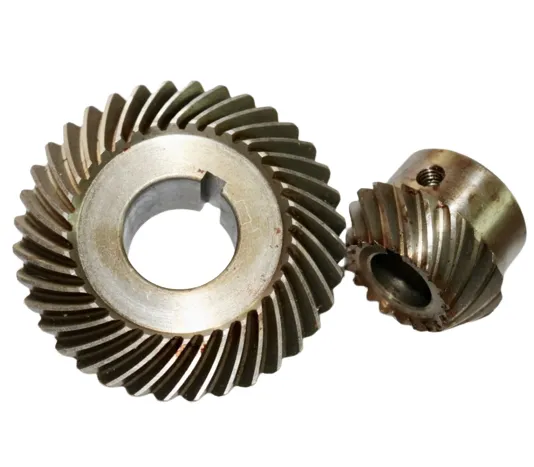

Precision Hot Forging Bevel Gears
As one of the bevel gears manufacturers, suppliers, and exporters of mechanical products, We offer bevel gears and many other products.
Please get in touch with us for details.
Mail:[email protected]
Cold Forged Components for Automotive, Mining, Agriculture & Renewable Energy
Gear tooth failure in drivetrain components costs Australian mining, agricultural, and automotive manufacturers an estimated $1.8 billion per year in unplanned downtime — and a significant share of those failures trace back to undersized or incorrectly specified gear blanks. Forging bevel gears address the root cause: the forging process aligns grain structure with the tooth profile, increasing tooth root fatigue strength by 25–40% over machined-from-bar equivalents at equal nominal geometry. Australia Ever-Power, based at 27 Harley Crescent, Condell Park NSW 2200, supplies precision forging bevel gears — straight and spiral types, hot/cold/compound forging — to OEM and MRO customers across Sydney, Melbourne, Brisbane, Perth, and Adelaide, with full ISO documentation and matched-pair quality certification.
What Are Forging Bevel Gears?
A forging bevel gear is a bevel gear — straight-tooth or spiral-tooth — whose blank is produced through a forging process rather than machined directly from bar stock or cast. During forging, steel is shaped under high compressive force (hot forging at 900–1,250 °C, cold forging at room temperature, or warm/compound forging at 650–900 °C). This shapes the metal's grain structure along the direction of principal stress in the finished tooth — the primary source of the fatigue strength advantage.
Precision forging bevel gears include both forging straight bevel gears (also called miter gears when ratio is 1:1 and shaft angle is 90°) and forging spiral bevel gears. Both variants undergo post-forging operations including CNC blank machining, Gleason or Klingelnberg tooth cutting, heat treatment (carburising, nitriding, or flame hardening), precision grinding, and lapping — producing components that meet ISO 23509, AGMA 2003, and DIN 3965 quality standards.
Compared to machined-from-bar equivalents, forging bevel gears offer: 25–40% higher tooth root bending fatigue strength, up to 20% lower weight at equal fatigue life, larger achievable finished dimensions, lower unit cost at production volumes above 100+ pairs, and superior impact resistance from the aligned grain structure. These properties make forged bevel gears the default specification for vehicle differentials, wind turbine nacelle drives, mining conveyors, and agricultural PTO systems — all sectors with substantial operations across New South Wales, Queensland, South Australia, Western Australia, and Victoria.
Types of Forging Bevel Gears: By Tooth Profile and Forging Method
By Tooth Profile
Forging Straight Bevel Gear
Teeth run straight along the cone surface. Simpler forging tooling, lower cost. Suitable for pitch line velocities below 5 m/s. When tooth counts are equal and shafts intersect at 90°, these are also classed as miter gears. Common in agricultural machinery and construction equipment across QLD and NSW.
Forging Spiral Bevel Gear
Curved helical teeth provide progressive load engagement — reducing noise by 5–10 dB(A) and increasing contact ratio 30–50% over equivalent straight bevel. Combined with forging's grain structure advantage, spiral forged gears achieve the highest load capacity and service life of any bevel type. Standard in automotive differentials, wind turbine nacelles, and industrial speed reducers.
Forging Zerol Bevel Gear
Curved teeth with zero spiral angle at the midpoint — interchangeable with straight bevel (identical bearing loads) while producing less noise. Drop-in replacement for straight bevel drives with no housing modification. Used in solar tracking, machine tools, and precision drives across SA and WA.
By Forging Method
Forged vs Machined-from-Bar: Key Differences
Key Specifications & Parameters
The table below covers the standard supply range for forging bevel gears from Australia Ever-Power. Non-standard modules, custom tooth profiles, and special alloys are all available through OEM/ODM engineering review within 48 Australian business hours.
Material Selection Guide
How to Select the Right Forging Bevel Gear — Step-by-Step Guide
Selecting a forging bevel gear requires working through these seven steps systematically. Skipping steps — particularly the load and material calculations — is the most common source of premature gear failure in Australian industrial applications.
Define All Application Requirements
Establish transmitted torque (Nm), input speed (rpm), gear ratio, shaft angle, operating temperature range, environmental exposure (moisture, chemicals, abrasion), and required service life. For Australian mining applications, apply service factor 1.5–2.5 for shock loading. Coastal installations in Sydney, Brisbane, or Darwin require explicit corrosion resistance specification.
Choose Tooth Profile — Straight, Spiral, or Zerol
Straight bevel: below 5 m/s pitch line velocity, noise not critical. Spiral bevel: above 3 m/s or where noise matters — 96–98% transmission efficiency, 25–40% higher load capacity than straight. Zerol: where spiral axial thrust is undesirable but noise improvement is needed. For Australian mining drives and vehicle drivetrains, spiral bevel is the default specification.
Select Forging Method Based on Volume & Tolerance
Hot forging: 1,000+ piece batches, post-machining acceptable, large dimensions, lowest unit cost. Cold forging: precision near-net-shape, 100–500 pieces, reduced machining. Compound forging: mid-range OEM automotive and agricultural volumes (200–1,000). Australia Ever-Power's engineering team recommends the optimal method after reviewing your volume forecast and dimensional requirements.
Select Material and Heat Treatment
For vehicle differentials and mining shock-load drives: 20CrMnTi carburised + quenched to 58–62 HRC is the standard. For wind turbine applications requiring 20+ year fatigue life: 42CrMo nitrided. Consult ISO 6336 or AGMA 2001 for formal material-life calculations. Always specify case depth explicitly — effective case depth at tooth root should be 0.15–0.35 × module for medium to high load.
Verify Pitch Cone Angle and Contact Geometry
Pitch cone angles must be calculated specifically for your shaft angle (Σ) and gear ratio using ISO 23509 formulae: tan(δ₂) = sin(Σ) / (cos(Σ) + z₁/z₂). Standard 90° shaft angle simplifies to δ₂ = arctan(z₂/z₁). For spiral bevel pairs, confirm both gears use the same manufacturing method (Gleason or Klingelnberg) and matching spiral hand direction.
Apply Load Safety Factor
The rated torque capacity must exceed peak operating load — not just mean transmitted torque. For Australian construction and agricultural equipment exposed to unpredictable ground conditions, specify minimum safety factor 1.5× peak load. Document load assumptions so the gear supplier can verify adequacy before production begins.
Specify Quality Documentation Requirements
For regulated applications (Australian agricultural machinery, defence-adjacent, wind turbines under AEMC/Clean Energy Regulator frameworks), specify upfront: NDT report, CMM dimensional inspection, hardness test record, contact pattern certificate, and material traceability. Australia Ever-Power provides this full documentation package as standard on precision forging bevel gear orders.
Forging Bevel Gear Manufacturing Process
Each stage in the manufacturing process contributes to the finished component's fatigue strength, dimensional accuracy, or surface integrity. The sequence below represents the full production flow for precision carburised forging spiral bevel gears.
① Billet Selection
Steel billet cut to calculated weight. Chemical composition verified against mill certificate. Inclusion rating assessed for fatigue-critical applications.
② Heating
Billet heated to 900–1,250°C (hot) or 650–900°C (warm) in controlled atmosphere furnace to minimise decarburisation. Temperature uniformity monitored throughout cross-section.
③ Die Forging
Hydraulic or mechanical press forces billet into precision die. Grain flow aligns with tooth contour — the primary source of the 25–40% fatigue strength improvement. Flash trimmed immediately after forging.
④ Annealing
Forged blanks annealed to relieve residual stress and reduce hardness to machinable levels before CNC turning and gear cutting operations.
⑤ CNC Machining & Tooth Cutting
CNC turning produces final blank geometry. Gleason generator cuts bevel tooth profile to specified module, pressure angle, and spiral angle. Grinding stock left on tooth flanks.
⑥ Heat Treatment
Carburising + quenching, nitriding, or flame hardening per specification. Surface hardness and case depth verified by Rockwell test. Heat treatment curve included in documentation package.
⑦ Grinding & Lapping
Post-hardening tooth grinding restores profile accuracy to DIN Grade 5–7. Lapping performed on spiral bevel pairs to optimise tooth contact pattern. Surface finish Ra ≤ 0.8 µm on tooth flanks.
⑧ Inspection & Documentation
NDT, CMM dimensional check, hardness verification, contact pattern photo. Full QA documentation package issued. 100% inspection available for critical OEM orders.
Related Components & Accessories for Forging Bevel Gear Drives
A complete bevel gear drive assembly requires these associated components. Australia Ever-Power supplies several of these alongside forging bevel gear sets — confirming dimensional compatibility before dispatch.
- Taper roller or angular contact bearings: Support bevel gear shafts and maintain mounting distance. Preload setting (typically 0.02–0.05 mm axial end-play) is critical for tooth contact pattern accuracy.
- Bearing carrier shims: Precision ground steel shims (0.05–0.5 mm thickness steps) used to adjust axial position of each gear member to achieve specified contact pattern and backlash. Should be included in every replacement kit.
- EP gear oil (ISO VG 220–460): Industrial bevel gearboxes require EP-additive gear oil matched to speed and load. Hypoid drives require GL-5 rated hypoid oil. Synthetic PAO grade recommended for Australian high-ambient-temperature mining and outdoor agricultural applications.
- Gear housing / gearbox casing: Cast iron, ductile iron, or aluminium alloy housing machined to specified bore diameters and shaft angles. Housing bore wear is the second most common cause of contact pattern shift after bearing wear.
- Output shaft and pinion shaft: Must be specified to transmit rated torque with adequate safety factor. Material typically 42CrMo or C45 with keyway or spline interface to the gear hub.
- Desiccant breather: Fitted to the gearbox vent to prevent moisture ingress — reduces water contamination of gear oil by 85–95% in Australian coastal and agricultural environments. Costs AUD $50–150 per gearbox; ROI through extended drain intervals.
- Lip seals and shaft seals: Nitrile or Viton shaft seals at each shaft entry point prevent oil leakage and exclude abrasive particles. Replace at each overhaul — a $5–$20 seal failure can destroy a $500–$5,000 gear set.
- Mounting bolts and locking elements: High-tensile grade 8.8 or 10.9 bolts with spring washers or Nordlock washers to prevent loosening under vibration in mining and agricultural equipment.
Applications in Australian Industry
Forging bevel gears are specified wherever load cycles are high, service life expectations are long, and the cost of drivetrain failure significantly exceeds the gear's replacement cost — which describes most sectors of the Australian industrial economy.
🚗 Automotive & Transport
Vehicle differentials in saloon cars, SUVs, light/heavy-duty trucks use forging spiral bevel gears as the primary direction-change component. OEM replacement differential parts suppliers in Melbourne and Sydney specify forged sets to meet 200,000+ km service life — machined-from-bar equivalents cannot reliably achieve this rating.
⛏️ Mining & Construction
Haul truck differentials, conveyor head drives, and crusher bevel heads in WA Pilbara, QLD Bowen Basin, and NSW Hunter Valley operate under extreme shock loads and 24/7 duty cycles. 20CrMnTi carburised forging bevel gears with shot-peened roots are the standard specification for these applications.
🌬️ Wind Power Generation
Australia's wind energy sector — with major installations in SA, VIC, and WA — demands forging spiral bevel gear sets with certified 20-year fatigue life. 42CrMo nitrided gears in M6–M12 are standard. Full material traceability documentation required by Clean Energy Regulator compliance frameworks.
🚜 Agricultural Machinery
Tractors, combine harvesters, and irrigation pump drives across QLD, NSW, and VIC rely on forging straight bevel gears in PTO drive trains and final drive axles. These must handle unpredictable shock loads from ground engagement while withstanding fertiliser and chemical exposure — requirements that forging's grain structure satisfies more reliably than cast or machined alternatives.
⚓ Marine & Shipbuilding
Propulsion systems, steering mechanisms, and auxiliary machinery on vessels operating out of Sydney, Brisbane, and Fremantle require 316 stainless or marine-grade alloy forging bevel gears with full marine certification documentation. Australia Ever-Power supplies matched stainless forged sets with Lloyd's-acceptable documentation packages.
✈️ Aerospace & Defence
Aircraft engines, helicopter transmission systems, and navigation drives require precision forging bevel gears where weight reduction, precision, and reliability are non-negotiable. Australian defence contractors and aerospace MRO organisations specify forged gears with full NDT, material traceability, and first-article inspection reports.
Maintaining Forging Bevel Gears for Maximum Service Life
Forged bevel gears deliver their superior fatigue life only when installed and maintained correctly. These five practices represent consensus from Australian maintenance engineers across mining, automotive, and agricultural sectors.
- Lubrication: Use ISO VG 220–460 EP gear oil with a sulfur-phosphorus EP additive package. For hypoid differentials, use GL-5 rated oil only. Change intervals: mineral EP oil every 2,000–4,000 hours (shorten by 30% in high-ambient Australian summer conditions); synthetic PAO every 4,000–8,000 hours.
- Replace spiral bevel pairs as matched sets: Forging spiral bevel gears are lapped as matched pairs. Never fit a new forged gear against a worn mating member — the contact pattern will be incorrect from the first revolution, accelerating tooth surface fatigue within weeks.
- Verify tooth contact pattern at each major overhaul: Use engineer's blue. Correct contact: centred ellipse, 65–70% tooth length, ~50% tooth depth. Any off-centre pattern warrants shim adjustment before returning to service.
- Monitor for micro-pitting: Inspect tooth flanks under 10× magnification at each 5,000-hour inspection. Fine grey mottling on the pitch line area warrants immediate oil quality review and load analysis. Micro-pitting precedes spalling failure by 500–2,000 operating hours in most industrial conditions.
- Maintain bearing preload: Check shaft end-play at each planned overhaul (target: 0.02–0.05 mm). Loss of 0.1 mm preload shifts the contact patch ~20% of tooth length. Restore preload by replacing or adding bearing spacer shims per the OEM service specification.
Market Price Comparison — Forging Bevel Gears in Australia
Forging bevel gear pricing depends on forging method, module, material, and volume. The table below provides indicative price orientation for M6–M10 alloy steel spiral bevel gear pairs.
Tooling costs for new forging die development: AUD $8,000–$35,000 depending on size, amortised across the production volume. Contact Australia Ever-Power for firm quotation including tooling cost analysis.
Why Australian OEMs Choose Australia Ever-Power
Australia Ever-Power, based at 27 Harley Crescent, Condell Park NSW 2200, operates as a bevel gear specialist serving Sydney, Melbourne, Brisbane, Perth, and Adelaide. The focus on bevel gears means application knowledge — not just catalogue lookup — applies to every inquiry.
All Three Forging Methods
Hot forging, cold forging, and compound/warm forging all available. Method selected per your volume, dimensional requirements, and material specification.
Full QA Documentation
NDT report, CMM dimensional inspection, hardness test record, heat treatment certificate, contact pattern certificate, material traceability — all supplied as standard for precision OEM orders.
3–7 Day Australian Delivery
DHL and UPS express delivery to Sydney, Melbourne, Brisbane, Perth, and Adelaide. Custom forged pairs dispatched within agreed production lead time — 15–25 business days for most configurations.
OEM/ODM from 1 Pair
Prototype pairs from 1 unit for design validation. Production from 50 pieces. Custom alloys, non-standard tooth profiles, special coatings, and OEM branding all accommodated.
ISO 9001:2015 Certified
Quality management certification covering raw material procurement, forging, heat treatment, machining, inspection, and delivery — the baseline for Australian automotive, mining, and government procurement.
AEST Engineering Support
Technical queries on forging method, material specification, and tooth geometry answered in Australian business hours. DFM review within 48 hours of drawing submission. No overnight delays.
Sustainability, Compliance & Global Supply Context
Forging bevel gears align with sustainability objectives in two practical ways: the forging process removes 15–30% less steel from the billet than machining from solid bar, and longer service life reduces the number of replacement cycles over an asset's operating period — reducing embedded carbon in drivetrain component supply over time.
Global Supply Context: Forging bevel gears are produced and consumed in the world's major automotive, mining, and renewable energy centres — China, Germany, USA, Japan, South Korea, India, and Brazil. Australia imports the majority of its forged bevel gear requirements. Australia Ever-Power sources from ISO-certified forging facilities and applies independent quality verification, giving Australian buyers access to competitive global pricing with local technical oversight, Australian documentation standards, and express delivery to all major cities.
What Australian Customers Say
"We upgraded our differential rebuild kits from machined to forged spiral bevel pairs. Workshop feedback has been consistently positive — the forged sets run measurably longer before showing any backlash increase. At our volume, the per-pair price difference is negligible when factoring in the reduced callback rate."
"Our wind turbine maintenance contract in SA requires 42CrMo forged spiral bevel sets with full material traceability to the mill certificate. Australia Ever-Power provides that complete documentation package as standard — no chasing, no supplements. Three scheduled inspections without issue across the full fleet."
"We manufacture agricultural harvester gearboxes in QLD and switched to forging straight bevel gears for our PTO drive units two seasons ago. Field reliability has improved noticeably — almost no tooth failure returns compared to the machined sets. Four stars because initial tooling development took slightly longer than estimated."
"We needed forged stainless bevel gears for offshore platform support vessels operating out of Fremantle. Full NDT documentation accepted by our Lloyd's surveyor without any queries. The team's knowledge of marine specification requirements saved a lot of back-and-forth — they asked the right questions about saltwater exposure before quoting."
Frequently Asked Questions — Forging Bevel Gears
Source Precision Forging Bevel Gears for Your Australian Operation
Contact Australia Ever-Power at 27 Harley Crescent, Condell Park NSW 2200. We supply ISO-certified forging bevel gears — straight and spiral, hot and cold forging, all alloys — to automotive, mining, agricultural, wind energy, and marine customers across Sydney, Melbourne, Brisbane, Perth, and Adelaide.
