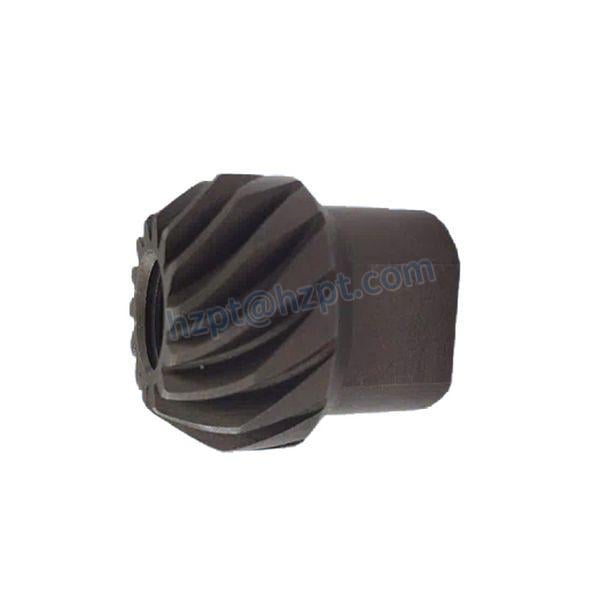

Aircraft Bevel Gear
As one of the bevel gears manufacturers, suppliers, and exporters of mechanical products, We offer bevel gears and many other products.
Please get in touch with us for details.
Mail:[email protected]
Studies across the aerospace maintenance sector show that over 68% of drivetrain failures in aviation ground-support and flight-control mechanisms trace back to substandard gear geometry or incorrect material selection. Aircraft bevel gears are mission-critical components that transmit rotational power between intersecting shafts — tolerances measured in microns, not millimetres. At Australia Ever-Power, located at 27 Harley Crescent, Condell Park NSW 2200, we supply certified aircraft bevel gears to aerospace OEMs, defence contractors, and industrial manufacturers across Sydney, Melbourne, Brisbane, and the wider Australian market.
What Is an Aircraft Bevel Gear?
An aircraft bevel gear is a cone-shaped mechanical gear designed to transmit power and torque between two intersecting axes, typically at a 90-degree angle, within aerospace and aviation drivetrain assemblies. Unlike standard industrial bevel gears, aircraft-grade variants must satisfy stringent metallurgical and dimensional standards — commonly referenced under AGMA 13, DIN 6, JGMA 1, and JIS 6 precision grades — to withstand cyclic fatigue loads, extreme temperature differentials, and vibration environments encountered in both fixed-wing and rotary-wing aircraft systems.
The tooth-bearing faces of these gears are conically shaped, allowing smooth power transfer at shaft intersection points that would be mechanically impossible with spur or helical gears. From flight-control actuators to landing-gear retraction systems and helicopter tail-rotor assemblies, aircraft bevel gears are fundamental to both primary and secondary flight systems.
Key technical definition: An aircraft bevel gear is a precision-machined, thermally treated, conical gear component rated to aerospace-grade meshing accuracy (AGMA 12–13 or DIN 5–6), manufactured from high-strength alloys or speciality metals and certified under ISO 9001/TS16949 quality systems.
Types of Aircraft Bevel Gears — Classification & Comparison
Aircraft bevel gears divide into two principal families defined by their tooth geometry and helix angle. Choosing incorrectly between them can compromise load capacity by up to 40% and significantly elevate noise levels — a critical concern in cockpit-adjacent assemblies.
Straight Bevel Gear
Teeth are cut straight along the cone surface. Simple to manufacture but produces more vibration and noise at high RPM. Increasingly rare in modern aerospace applications due to polishing limitations.
Spiral Bevel Gear
Teeth are curved at a helix angle, enabling gradual tooth engagement. Up to 30% quieter than straight variants; tooth surfaces can be precision-ground and polished — the preferred choice in aviation drivetrain systems globally.
Zerol Bevel Gear
A spiral bevel gear with zero helix angle. Combines the quiet operation of spiral gears with axial thrust characteristics similar to straight bevel gears. Commonly used in light aircraft actuator systems.
Hypoid Bevel Gear
Shaft axes do not intersect — offset design allows larger pinion diameter and greater torque capacity. Used in helicopter transmission stages and certain military aerospace applications requiring compact packaging.
| Type | Helix Angle | Noise Level | Polish-able | Typical Application |
|---|---|---|---|---|
| Straight Bevel | 0° | High | No | Low-speed ground equipment |
| Spiral Bevel | ≥ 10° | Low | Yes | Aircraft drivetrain, tail rotor |
| Zerol Bevel | 0° (curved) | Medium | Yes | Light aircraft actuators |
| Hypoid Bevel | Variable | Low | Yes | Helicopter gearboxes, military |
Key Specifications & Technical Parameters
Every aircraft bevel gear supplied by Australia Ever-Power is documented with full dimensional and metallurgical traceability. The table below outlines standard parameters — custom configurations are available for aerospace OEM projects across Australia.
| Parameter | Specification | Notes |
|---|---|---|
| Dimension Range | Ø3 mm – Ø120 mm (standard); Ø10 mm typical | Custom sizes available on request |
| Module | M0.15 – M2.2 (M2.0 standard) | Per ISO 54 module series |
| Meshing Grade | AGMA 12–13 | DIN 5–6 | JGMA 1 | JIS 6 | Highest aerospace grade available |
| Material Options | Steel, Alloy Steel, Stainless, Aluminium, Brass, Bronze, Copper, Zinc, POM, Iron | Material per application load/environment |
| Heat Treatment | Carburising & quenching, High-frequency quenching, Nitriding, Hardening & tempering | Selected per material and duty cycle |
| Surface Finish | Ground & lapped tooth flanks (spiral variants) | Ra ≤ 0.8 µm achievable |
| Certification | ISO 9001:2008 / TS16949 | Full material traceability certificates |
| Customisation | ODM / OEM — full drawing-to-production service | Sample lead time: 5–7 business days |
| Packaging | Vacuum-sealed with anti-corrosion plastic tray | Export-grade packing for long transit |
| Delivery to Australia | DHL Express / UPS — 5–10 business days to Sydney | Local stock held for select SKUs |
How to Select the Right Aircraft Bevel Gear — Step-by-Step Guide
Selecting the wrong gear type or grade is one of the most common and costly engineering mistakes in aerospace procurement. This structured selection process reflects best practice as outlined by AGMA 2005 (design of bevel and hypoid gears) and is used by procurement engineers across Australian aerospace facilities in Sydney, Melbourne, and Brisbane.
Applications in Australian Aerospace & Industrial Sectors
Aircraft bevel gears serve a remarkably broad application landscape across Australia's manufacturing and defence sectors. From the aerospace facilities near Sydney's Bankstown Airport to defence maintenance workshops in Brisbane and component manufacturers in Melbourne's industrial west, bevel gears appear wherever rotational power must change direction efficiently.
Flight Control Actuators
Spiral bevel gears transmit servo-motor torque to control surface linkages. Tight backlash control (< 0.01 mm) is mandatory for fly-by-wire systems.
Helicopter Tail Rotor
High-speed spiral bevel sets transmit main-rotor torque to the tail-rotor shaft at 90°. Operating speeds commonly exceed 6,000 RPM — surface finish is critical.
Landing Gear Retraction
Bevel gear sets drive screw-jack mechanisms for nose and main-gear retraction, handling peak loads during take-off and landing cycles.
Medical & Defence Equipment
Miniature bevel gears (Ø3–15 mm) are used in surgical robots, portable diagnostic devices, and military optics — all sectors growing rapidly across Australia.
Industrial Automation
Australian manufacturers in food processing, mining equipment assembly, and packaging machinery regularly source bevel gears for right-angle drive gearboxes.
Automotive & EV Drivetrains
Differential bevel gears are a core component in rear-axle assemblies. With Australia's EV sector expanding, demand for precision-ground bevel sets is accelerating.
Manufacturing Process & Material Selection
Understanding how an aircraft bevel gear moves from raw billet to certified component helps procurement engineers evaluate supplier capability. Our 10-stage production process aligns with ISO 9001:2008 / TS16949 quality management requirements and supports full first-article inspection (FAI) documentation.
Material Selection Guide
| Material | Tensile Strength | Key Advantage | Best For |
|---|---|---|---|
| Alloy Steel (9310) | ≥ 930 MPa | High fatigue life after carburising | Flight-critical drivetrain |
| Stainless Steel (17-4PH) | ≥ 1,100 MPa | Corrosion resistance | Marine / humid environments |
| Aluminium 7075 | ≥ 500 MPa | Weight reduction ~60% vs steel | Low-torque actuators, UAVs |
| Brass / Bronze | 250–600 MPa | Self-lubricating, low-noise | Instrument & avionics mechanisms |
| POM (Delrin) | 60–70 MPa | Chemical resistance, lightweight | Medical-grade miniature gears |
Installation, Maintenance & Replacement Guide
Correct installation and scheduled maintenance extend aircraft bevel gear service life significantly — industry data suggests proper mounting procedures reduce premature failure rates by up to 45%. The following guidance applies to standard right-angle bevel sets in aerospace and industrial gearboxes.
Installation Checklist
Clean housing bores — Remove all burrs, chips, and old sealant. Bore roundness must be within 0.01 mm.
Apply light lubrication — Use aviation-grade gear oil (MIL-PRF-23699 or equivalent) to tooth flanks before assembly. Do not use grease containing PTFE in high-speed aerospace gearboxes.
Set backlash precisely — Measure with a dial indicator at the pitch circle. Target backlash per manufacturer specification — typically 0.05–0.15 mm for M0.5–M2.0 aerospace gears.
Check tooth contact pattern — Apply marking compound and rotate through one full revolution. Contact pattern should cover 50–70% of face width, centred on the tooth flank.
Torque fasteners to spec — Use calibrated torque wrench. Document all fastener torque values in the maintenance log for traceability, especially on flight-certified assemblies.
Scheduled Maintenance Intervals
| Interval | Task | Action if Abnormal |
|---|---|---|
| Every 200 flight hours | Visual tooth inspection; check oil level and colour | Replace oil if dark/metallic; inspect for pitting |
| Every 600 flight hours | Backlash re-measurement; bearing clearance check | Adjust shim pack if backlash exceeds 150% of spec |
| Overhaul (per AMM) | Full strip, NDT inspection, gear replacement if wear > 10% tooth depth | Replace matched gear pair — never replace pinion only |
Why Australian Engineers Choose Australia Ever-Power
Australia Ever-Power has operated from 27 Harley Crescent, Condell Park NSW 2200 — serving aerospace, defence, and industrial manufacturers across Sydney, Melbourne, Brisbane, Perth, and Adelaide. With over a decade of precision gear supply experience and a network of ISO 9001-certified production partners, we bridge the gap between international manufacturing capability and Australian service expectations.
AGMA 13 / DIN 5 Grade
Highest commercially available precision grade — same standard demanded by major aerospace OEMs worldwide.
Local Support in Australia
Australian-based technical advisors, local stock for fast-moving SKUs, and DHL Express delivery reaching most Australian capitals within 5–8 business days.
Full ODM/OEM Capability
From concept drawing to certified production part — our engineering team handles DXF/STEP review, material selection, and FAI documentation.
ISO Certified Production
ISO 9001:2008 and TS16949 certified production chain. Material mill certificates and dimensional inspection reports provided with every shipment.
Flexible Order Quantities
Samples from as few as 1 piece. Production batches from 10 to 50,000+ units. Consolidated shipping available to reduce freight costs for Australian buyers.
Fast Sample Turnaround
Simple samples ready in 5–7 business days. Complex aerospace prototypes with full inspection within 2–3 weeks — faster than most domestic Australian machine shops.
Market Pricing Overview
Aircraft bevel gear pricing varies substantially based on material, precision grade, size, and batch volume. The table below provides indicative price ranges for Australian procurement teams planning budgets. Final pricing depends on exact specifications — contact Australia Ever-Power for a tailored quotation.
| Category | Size / Grade | Approx. Unit Price (AUD) | Typical MOQ |
|---|---|---|---|
| Standard Industrial Bevel | M1–M2, Steel, AGMA 12 | $18 – $65 | 50 pcs |
| Precision Aircraft Bevel | M0.5–M2, Alloy Steel, AGMA 13 | $85 – $320 | 10 pcs |
| Spiral Bevel (Ground) | M1–M2.2, 9310 Steel, DIN 5 | $180 – $650 | 5 pcs |
| Miniature Bevel (Medical/Avionics) | Ø3–10 mm, Stainless / Brass | $12 – $95 | 100 pcs |
| Custom ODM (Full Service) | Any spec — drawing to delivery | POA (request quote) | 1 pc (sample) |
Sustainability, Compliance & Regulatory Framework
Australia's aerospace and defence manufacturing sector operates within a tightly regulated compliance environment. Aircraft bevel gears sourced for use in certified aircraft must meet traceability and documentation requirements consistent with CASA (Civil Aviation Safety Authority) regulations and, where applicable, AS/NZS standards.
All Australia Ever-Power aircraft bevel gears are manufactured under ISO 9001:2008 and TS16949 quality management systems, providing the documentation chain required for most regulatory submissions. Material certifications (mill certs) are included with each shipment, and first-article inspection (FAI) reports are available for new part numbers.
From an environmental standpoint, our supply chain prioritises recycled-content metal billets where mechanical properties permit, and all packaging materials are recyclable per Australian Packaging Covenant commitments. Long-life gear sets — through correct material and heat treatment selection — reduce replacement frequency and associated carbon footprint across the product lifecycle.
Aircraft bevel gears from Australia Ever-Power are exported to aerospace and industrial customers across the United States, United Kingdom, Germany, Japan, South Korea, Canada, and New Zealand — in addition to the broader Australian domestic market — reflecting both the global demand for precision bevel gear components and the quality standards our products consistently meet.
What Australian Customers Say
Feedback from procurement engineers and maintenance managers across Australia's aviation and industrial sectors consistently highlights gear accuracy, documentation quality, and delivery reliability as key differentiators.
"We specified AGMA 13 spiral bevel gears for a helicopter tail-rotor gearbox overhaul project in Brisbane. Australia Ever-Power delivered matched pairs with full CMM reports within three weeks of drawing approval. Tooth contact was spot-on first time — no re-work required."
"Our procurement team in Melbourne trialled miniature stainless bevel gears for a new surgical robotics assembly. Tolerances held to drawing across the entire sample batch of 50 pieces. We've since placed three production orders — zero dimensional non-conformances to date."
"We sourced M2.0 alloy steel bevel gears for a defence ground-support vehicle programme here in Sydney. Lead time on the initial sample run was seven days — faster than any Australian supplier we approached. Documentation package met ASDEFCON requirements."
"As a packaging machinery manufacturer in Adelaide, we use right-angle bevel gear drives extensively. Australia Ever-Power's ability to consolidate our bevel gear range — multiple modules, multiple materials — into a single supplier relationship has cut our procurement admin time by roughly 35%."
Frequently Asked Questions
What is the difference between an aircraft bevel gear and a standard industrial bevel gear?
＋
Aircraft bevel gears must meet substantially tighter geometric accuracy requirements — typically AGMA 12–13 or DIN 5–6, compared to AGMA 10–11 for most industrial applications. They are manufactured from aerospace-grade alloys (such as 9310 or 17-4PH stainless), undergo certified heat treatment with documented hardness outcomes, and require full dimensional inspection with traceable reports. Weight, fatigue life under cyclic loading, and documentation for regulatory compliance are all factors that differentiate them from standard industrial variants.
Can Australia Ever-Power supply matched bevel gear pairs, or only individual gears?
＋
We supply both matched pairs and individual gears. For aerospace and high-speed applications, matched pairs — lapped together on the same machine — are strongly recommended. Replacing only the pinion or ring gear from an existing worn set is poor practice that typically leads to rapid re-failure. All spiral bevel matched pairs are supplied with a shared contact pattern report confirming tooth bearing position and size.
How long does it take to produce a custom aircraft bevel gear from drawings?
＋
For straightforward geometry (simple spiral or straight bevel, standard material), first samples are typically ready within 5–7 business days from drawing approval. More complex geometries — hypoid sets, non-standard angles, exotic materials such as titanium — require 2–4 weeks. Production batch lead times after sample approval are generally 3–6 weeks depending on quantity, with DHL Express delivery to Australia adding 5–8 business days from despatch.
What documentation is provided for CASA or defence compliance purposes?
＋
Standard documentation with every aircraft-grade order includes: material mill certificate (with heat number and chemical composition), dimensional inspection report (CMM-generated, AGMA or DIN referenced), heat treatment certificate with hardness test results, and ISO 9001 / TS16949 quality certificate. First-article inspection (FAI) packages aligned with AS9102 can be arranged for new part numbers on request — discuss this with our technical team when submitting your enquiry.
What is the minimum order quantity for aircraft bevel gears?
＋
Sample orders start from a single piece for evaluation. Standard production MOQs are 5–10 pieces for precision aircraft bevel gears. Larger standard industrial sizes (M1.5–M2.2, steel) may have MOQs of 20–50 pieces. For wholesale or ongoing supply contracts, blanket orders with scheduled releases can be arranged to reduce per-unit pricing and maintain buffer stock at our Condell Park NSW facility for Australian customers.
Does Australia Ever-Power support consolidated shipments for multiple gear types?
＋
Yes. Many Australian manufacturers purchase bevel gears alongside spur gears, helical gears, couplings, and gearbox components in a single shipment to reduce freight costs. We actively assist clients in consolidating orders across product types and can coordinate multi-pallet consignments via DHL or sea freight for larger programmes. Contact our Sydney-serviced team to discuss freight consolidation options for your specific supply chain requirements.
Can I get a sample without committing to a production order?
＋
Absolutely. Sample orders carry no obligation to proceed to production. We encourage Australian engineering teams to validate fit, form, and function — including running the gear in your actual assembly — before committing to batch quantities. Sample pricing covers material, machining, heat treatment, and inspection costs. If stock-equivalent items are available, samples can sometimes ship within 48 hours of payment confirmation.
Customer Success — Case Study
A regional aircraft maintenance organisation based near Sydney's Bankstown Airport needed to source replacement spiral bevel gear sets for a fleet of eight light twin-engine aircraft undergoing scheduled overhaul. The original OEM supplier had a 14-week lead time; local Australian machine shops could not meet the geometric accuracy requirements at competitive cost.
