Precision Bevel Gear: The Complete Sourcing

Tooth profile, module, pressure angle, and cone geometry are defined in 3D CAD software. Finite element analysis (FEA) verifies stress distribution and tooth root strength before any metal is cut.

Certified bar stock or forgings are turned to gear blank dimensions with bore, face, and OD tolerances held to IT6. Material certificates (mill certs) are verified against order specification at this stage.

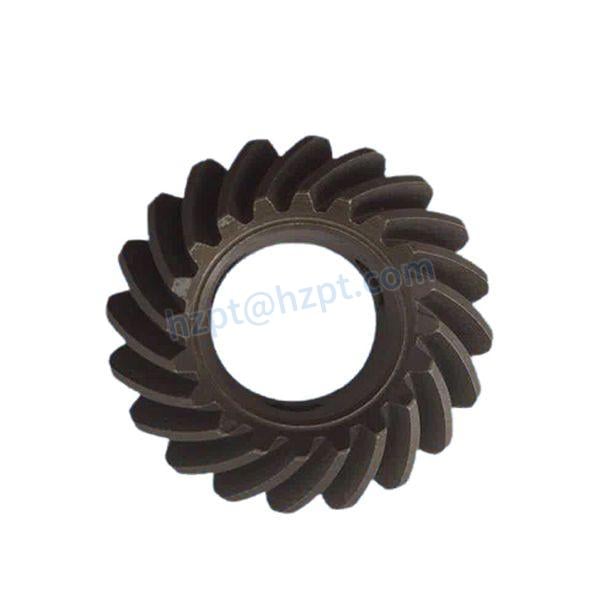

Teeth are generated using Gleason face-milling (spiral bevel) or Coniflex generation (straight bevel). CNC gear-cutting machines maintain cutting-cycle repeatability to ±2 µm tooth-spacing error.

Carburising and quenching achieves 58–62 HRC case hardness on steel grades. Nitriding is used for distortion-sensitive aerospace parts. Full heat treatment records are retained per IATF 16949 traceability requirements.

Post-heat-treatment tooth grinding corrects distortion and achieves Ra ≤ 0.4 µm. Lapping with matched pairs further reduces surface roughness to Ra ≤ 0.2 µm, essential for ISO Grade 3–5 precision.

100% CMM (Coordinate Measuring Machine) inspection for precision grades. Measured parameters include pitch error, tooth form error, lead error, and runout — all reported against ISO 17485 tolerance bands.

Finished gears are vacuum-packed with individual plastic trays to prevent transit damage and contamination. Full QA documentation — including chemical composition, mechanical performance, dimensional, and heat treatment reports — is supplied with each order.

① Determine Required Gear Ratio & Shaft Angle

Calculate ratio = input rpm ÷ output rpm. Confirm the shaft intersection angle (most precision bevel applications are 90°, but angles from 45°–135° are achievable). State both parameters clearly on any enquiry — they define the pitch cone angles and cannot be changed post-manufacture.

② Calculate Design Torque with Service Factor

Design torque (Nm) = Nominal torque × KA (AGMA service factor). KA = 1.0 for smooth loads; 1.25–1.5 for moderate shock; 1.75+ for heavy shock. Never select a gear at exactly rated torque — specify at minimum 1.5× rated for critical drives per AS 4024 machinery safety guidelines.

③ Choose Module Based on Load and Envelope

Larger modules carry more torque but increase gear OD. For precision drives with OD constraints (medical devices, miniature robotics), M0.15–M0.5 in brass or POM allows gear ODs below 5 mm. Industrial drives typically use M1–M4. Verify module fits available centre distance before finalising.

④ Select Tooth Form for Speed and Noise Requirements

Specify straight bevel gears for pitch-line velocities below 5 m/s. Specify spiral bevel gears for velocities above 5 m/s or where ambient noise must stay below Safe Work Australia's 85 dB(A) action level. Spiral bevel gears at ISO Grade 5 reduce noise by 8–15 dB(A) versus straight bevel equivalents.

⑤ Specify Material and Heat Treatment

20CrMnTi case-hardened to 58–62 HRC for high-load industrial drives. 316 SS for food-processing or marine environments (FSANZ and AS/NZS 4020 compliance). Aluminium alloy for UAV or lightweight aerospace. POM/acetal for low-load medical or instrument applications where electrical isolation or chemical resistance is required.

⑥ Define Accuracy Grade

ISO Grade 6 covers the majority of industrial drives, CNC machine tools, and robotics. ISO Grade 4–5 is required for aerospace accessories, medical surgical instruments, and high-speed spindle drives above 5,000 rpm. Specifying a higher grade than necessary adds cost without functional benefit — get the grade right for the application.

⑦ Confirm Mounting, Bore, and Lubrication

Specify bore diameter, keyway dimensions (AS 1456 / ISO 773), and whether a hub, flange, or plain bore is required. For speeds above 1,000 rpm specify ISO VG 150–220 gear oil (ISO 12925-1); below 500 rpm, NLGI Grade 2 lithium grease is adequate. Food-contact applications require NSF H1-registered lubricants.

⑧ Request Full QA Documentation

For critical applications, require: chemical composition report, mechanical performance test report, CMM dimensional inspection report, and heat treatment records. For IATF 16949-audited automotive lines, also request PPAP (Production Part Approval Process) documentation. Australia Ever-Power provides the complete package as standard for precision bevel gear orders.

⚠ Tooth Wear / Pitting

Cause: Overload, inadequate lubrication, or wrong material grade.

Fix: Upgrade to higher-density grade or harder material; restore correct lubricant film; verify service factor ≥1.5×.

⚠ Excessive Noise / Vibration

Cause: Misalignment, lubricant depletion, or accuracy grade below DIN 6.

Fix: Blue-dye contact check; realign to centred contact patch (50–70% face width); upgrade to ISO Grade 5 ground gears if noise persists above 85 dB(A).

⚠ Axial Thrust Bearing Failure

Cause: Axial loads exceeding 40% of rated radial load; incorrect bearing selection.

Fix: Install angular contact or tapered roller bearings rated for combined axial/radial loads; verify thrust load in design calculations.

⚠ Lubrication Failure

Cause: Wrong lubricant grade, incorrect quantity, or expired service interval.

Fix: Change to ISO VG 150–220 gear oil; set oil analysis interval at 2,000 hours; replace lubricant at 5,000 hours regardless of condition for high-duty drives.

⚠ Contamination / Corrosion

Cause: Seal failure, wash-down ingress, or wrong material for environment.

Fix: Upgrade to IP65/IP67 housing seals; specify 316 SS gears for corrosive environments; inspect seals every 3,000 hours.

🌿 Material Efficiency

Precision CNC-machined bevel gears generate 15–30% less material waste than conventional hobbed gears through near-net-shape pre-machining. Scrap alloy steel is 100% recyclable — Australia Ever-Power's supply partners operate closed-loop swarf recovery programmes reducing embodied carbon by an estimated 22% per tonne of finished gear output.

⚡ Energy Efficiency

Precision bevel gear drives at ISO Grade 5 operate at 97–99% mechanical efficiency — 7–39 percentage points above worm gear alternatives. For Australian manufacturers subject to the EREP scheme (Energy Efficiency Opportunities Act framework), switching to precision bevel gear drives in right-angle applications delivers measurable, auditable energy savings.

📋 Regulatory Compliance

Precision bevel gears supplied by Australia Ever-Power are manufactured under ISO 9001:2015 / IATF 16949 quality systems. All gear-containing machinery installed in Australian workplaces must comply with AS 4024.1 (Safety of Machinery) for guarding, and AS 1657 for access requirements around rotating equipment.

🌏 Key Export Markets

Australia is a major importer and re-exporter of precision bevel gears to New Zealand, Papua New Guinea, and Pacific Island nations. Australia Ever-Power provides export documentation, country-of-origin certificates, and customs HS code support (HS 8483.10) for trans-Tasman and Pacific trade flows.

🏭 Sydney Local Stock

Standard precision bevel gear pairs M0.5–M4 in steel, 316 SS, brass, and POM stocked at 27 Harley Crescent, Condell Park NSW 2200. Same-week dispatch to Sydney metro; 2–3 business days nationally.

📐 ISO 9001 & IATF 16949

Full QA documentation package — chemical composition, mechanical performance, CMM dimensional inspection, and heat treatment records — supplied as standard. PPAP available for automotive OEM customers.

🔧 OEM / ODM Capability

Custom precision bevel gears from customer drawings or samples. Sample lead: 3–5 days (stock basis); 20 days (custom). Bulk: 25 days. Minimum order quantities start at one pair for samples.

🔬 Engineering Review

Free pre-purchase application review covering torque, service factor, module, accuracy grade, material, and lubrication. We flag under-specification before it reaches your line — not after a warranty failure.

📦 National & Export Delivery

DHL & UPS international dispatch. Nationwide Australian delivery including remote WA, NT, and Tasmania. Export certificates and HS code documentation for NZ and Pacific export orders.

📍 Our Location

Australia Ever-Power
27 Harley Crescent
Condell Park NSW 2200
Mon–Fri, AEST business hours

"We needed M0.5 stainless bevel gears to ISO Grade 5 with full biocompatibility documentation for a new surgical instrument. Most suppliers couldn't even quote within a week. Australia Ever-Power came back with engineering confirmation, a sample lead time, and a QA package outline within 24 hours. The sample gears passed our CMM check on first submission — dimensional accuracy well within our ±0.005 mm tolerance. We've now placed three production orders and every batch has been consistent."

"Our previous supplier's lead time blew out to 14 weeks — which killed our production schedule. Ever-Power had matched spiral bevel pairs in 20CrMnTi in stock, shipped same week to our Dandenong facility. The PPAP documentation they provided was complete on first submission — no back-and-forth with our quality team. Switching to Ever-Power saved us approximately $38,000 in emergency freight and expedite charges in our first six months. We're now using them as our primary precision bevel gear source."

"We had recurring bevel gear failures on our filling line — about every 6,000 hours. The Ever-Power team reviewed our application data and identified we were running a standard carbon steel gear in a wash-down zone — wrong material entirely. They recommended 316 SS passivated gears at the same module and we haven't had a corrosion-related failure in 18 months. They also provided the FSANZ compliance documentation our food safety auditor required. Genuinely helpful — they know gears, not just part numbers."

"We're developing a six-axis collaborative robot arm for an Australian defence client. Backlash and noise are critical. Ever-Power supplied ISO Grade 5 spiral bevel gears in 42CrMo4 with lapped finish — the backlash came in under 2.5 arc-minutes on all six pairs, which exceeded our spec. The pre-purchase engineering review they did before we committed to tooling costs saved us what I estimate was a $15,000 redesign cycle. For precision drive component sourcing in Australia, they're genuinely the right partner."

Q1: What accuracy grade do I need for a CNC machine tool application?

For CNC machine tools — milling heads, rotary tables, and spindle drives — ISO Grade 4 or 5 is the standard requirement. Grade 4 allows a maximum total composite error of approximately 11 µm for a Module 1 gear; Grade 5 allows 16 µm. Below Grade 4 (Grades 1–3) is generally reserved for aerospace metrology instruments and is rarely justified in machine tools. Above Grade 6 (Grades 7–12) is unacceptable for CNC applications where positioning repeatability below ±5 arc-seconds is required. Australia Ever-Power stocks Grade 5 precision spiral bevel gears for common CNC module sizes with same-week Sydney dispatch.

Q2: Can you supply precision bevel gears from a customer drawing or sample?

Yes — Australia Ever-Power's ODM and OEM service accepts both 2D engineering drawings (DXF/DWG/PDF) and physical samples as the basis for custom manufacture. For drawing-based orders, we review the specification, confirm feasibility and accuracy grade achievability, and return a quotation within 48 hours. For sample-based reverse engineering, we perform dimensional inspection and tooth profile measurement before quoting. Sample lead time for custom precision bevel gears is typically 20 business days; bulk production is 25 business days from order confirmation. Minimum order is one pair for samples; commercial quantities start at 10 pairs, with no upper volume limit.

Q3: What is the difference between ISO Grade 6 and AGMA 13 for bevel gears?

ISO Grade 6 (per ISO 17485:2006) and AGMA Quality Number 13 (per AGMA 2000-A88) are broadly equivalent precision levels for bevel gears, both describing a high-precision industrial grade with total composite error in the 16–25 µm range for Module 1. The two systems use different numerical scales — lower ISO numbers = higher precision; higher AGMA numbers = higher precision — which creates confusion. AGMA 13 ≈ ISO Grade 5–6; AGMA 12 ≈ ISO Grade 6–7. When specifying to both standards (as required by some Australian automotive OEMs supplying to American customers), request dual certification referencing both ISO 17485 and AGMA 2000-A88 on the inspection report. Australia Ever-Power supplies dual-standard inspection documentation on request.

Q4: What lubrication is correct for precision bevel gears running at 3,000 rpm?

At 3,000 rpm with a pitch-line velocity typically in the 3–8 m/s range, forced or splash oil lubrication is required. The correct lubricant is an ISO VG 100 or VG 150 gear oil classified to ISO 12925-1 Category CKD (extreme pressure, anti-wear additive package). Synthetic PAO-based oils are preferred for high-speed or wide temperature range applications (−20°C to +120°C operating). Grease lubrication is not suitable above 1,500 rpm in precision drives — it channels away from the contact zone and fails to form an adequate EHD (elastohydrodynamic) film. Oil change intervals at 3,000 rpm continuous duty: 3,000 hours or 12 months, whichever comes first, per AGMA 9005-F16 lubrication guidelines.

Q5: How do I verify that a precision bevel gear meets its stated accuracy grade on receipt?

The definitive verification method is CMM (Coordinate Measuring Machine) gear inspection measuring pitch error, tooth form error, lead error, and runout against the tolerance bands defined in ISO 17485:2006 for the stated grade. In-house gear testers (single-flank or double-flank) provide a faster but less granular check — double-flank composite testing detects total composite error and tooth-to-tooth composite error in seconds per gear. For incoming inspection without gear-specific equipment, blue-dye (marking compound) contact testing at correct mounting distance verifies contact pattern position and spread — a centred oval covering 50–65% of face width indicates correct grade and alignment. Australia Ever-Power provides CMM inspection reports with every precision order, enabling customers to accept gears without independent re-inspection if preferred.

Q6: What is the typical service life of a precision bevel gear in an industrial drive?

Correctly specified, installed, and maintained precision bevel gears at ISO Grade 5–6 are rated to a minimum L10 fatigue life of 20,000–25,000 operating hours per ISO 10300. Drives operating below 60% of rated torque with correct lubrication routinely exceed 50,000 hours. The primary life-limiting factors in Australian industrial environments are lubricant contamination (accelerates wear by 5–10×), misalignment (reduces life by up to 70% for 0.2 mm axial error), and thermal cycling in outdoor or unregulated-temperature installations. Planned maintenance at 3,000–5,000 hour intervals — covering contact pattern check, backlash measurement, and oil analysis — is the single most cost-effective life extension strategy for precision bevel gear drives.

Q7: Does Australia Ever-Power offer samples before bulk orders?

Yes. Samples are available from stock (3–5 business days) or as custom-made pieces (20 business days). Sample pricing ranges from AUD $18 for miniature brass gears through to AUD $450+ for precision alloy steel spiral bevel pairs with full QA documentation. Sample freight within Australia is charged at cost; international sample express freight (DHL/UPS) is at customer account or prepaid. All samples are supplied with the same inspection documentation as production orders — there is no "sample grade" versus "production grade" distinction in Australia Ever-Power's quality system. This allows customers to use sample inspection data directly in their first-article qualification reports.

Q8: What Australian Standards apply to machinery containing precision bevel gears?

The primary standards for Australian machinery containing precision bevel gears are: AS 4024.1 series — Safety of Machinery (guarding rotating components, access prevention, risk assessment); AS 2938 — Gears: General (geometric data and terminology); AS 1657 — Fixed Platforms, Walkways, Stairways and Ladders (access to gear drive installations); and AS/NZS 3000 (Wiring Rules, relevant for electrically driven gear systems). For food industry installations: AS 4674 (construction and fit-out of food premises). For pressure equipment containing gear-driven actuators: AS 4024.3 series. Australia Ever-Power provides gear-level documentation (material certs, inspection reports, accuracy grade certificates) that supports customers' own machinery compliance processes under these standards.
