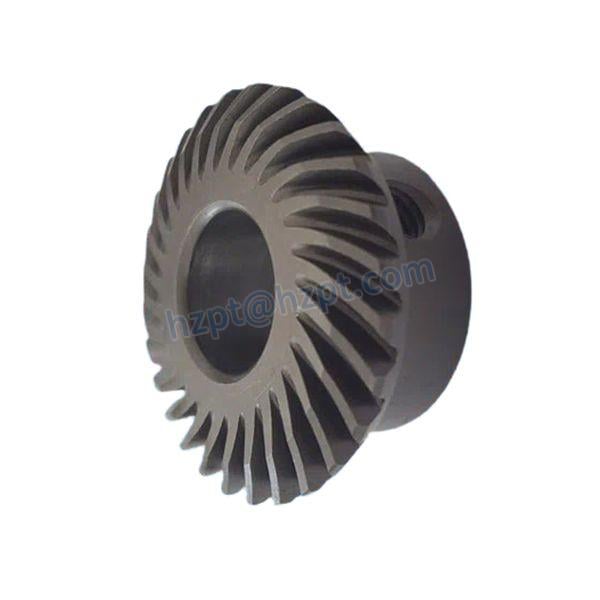

Metal Bevel Gear：Engineering Guide for Australian Manufacturers

Tooth geometry, module, pressure angle, and cone dimensions defined in SolidWorks or AutoCAD. FEA stress analysis confirms root strength and contact pattern before cutting begins. Design files retained for traceability per IATF 16949 records requirements.

Certified bar stock or forgings verified against mill certificates. Chemical composition and mechanical properties checked against DIN EN ISO 683-17 before any machining commences. All raw materials are environmentally compliant with RoHS and REACH where applicable.

Gear blanks turned to bore, face, and OD dimensions holding IT6 tolerance class. Runout verified with CMM at this stage — any blank exceeding 0.01 mm total runout is rejected before tooth cutting, preventing compound errors in the finished gear.

Teeth generated using Gleason face-milling (spiral bevel) or Coniflex generation (straight bevel) on CNC gear-cutting machines. Cutting cycle repeatability held to ±2 µm tooth-spacing error. Tool wear monitored per batch to maintain consistent geometry throughout production runs.

Steel grades carburised and quenched to 58–62 HRC case hardness. Nitriding used for distortion-sensitive aerospace and medical components. Full time-temperature records retained per IATF 16949 traceability requirements. Heat treatment depth verified by metallographic cross-section sampling.

Post-heat-treatment tooth grinding corrects thermal distortion and achieves Ra ≤ 0.8 µm. Lapping with matched mating pairs reduces surface roughness to Ra ≤ 0.4 µm for DIN Grade 5–6 precision. Contact pattern confirmed by blue-dye check — centred oval covering 50–65% face width required for acceptance.

100% dimensional CMM inspection for precision grades. Full QA documentation package — chemical composition report, mechanical performance report, dimensional inspection report, heat treatment records — compiled and shipped with every order. Vacuum packing with plastic tray prevents transit damage.

① Define Shaft Angle and Gear Ratio

Confirm the intersection angle between input and output shafts (usually 90°). Calculate ratio = input rpm ÷ output rpm. For ratios above 4:1, consider a two-stage arrangement — single-pair metal bevel gears are most efficient at ratios of 1:1 to 4:1. State both parameters explicitly on any enquiry: they define the pitch cone angles and cannot be changed after manufacture.

② Calculate Design Torque with Service Factor

Design torque (Nm) = Nominal torque × KA. Apply AGMA service factor: KA = 1.0 for smooth uniform loads; 1.25–1.5 for moderate shock; 1.75+ for heavy shock (crushers, hoists). Specify a gear rated above design torque with a 1.5× minimum safety margin for critical drives per AS 4024 machinery safety guidelines.

③ Select Tooth Form for Speed and Noise

Straight bevel for pitch-line velocity below 5 m/s where cost matters most. Spiral bevel for velocity above 5 m/s or where ambient noise must remain below Safe Work Australia's 85 dB(A) action level — spiral bevel gears at DIN Grade 6 run 8–15 dB(A) quieter than equivalent straight bevel pairs. Hypoid for very high torque or automotive-style offset-axis arrangements.

④ Choose the Right Metal and Heat Treatment

Steel (20CrMnTi, 42CrMo4) case-hardened to 58–62 HRC for most industrial drives. Stainless 316 with passivation for food-processing, marine, or medical environments. Aluminium alloy for weight-critical aerospace or UAV drivetrains. Brass or bronze for low-load, low-noise instrument drives where self-lubrication is valued. POM only for light-duty silent drives where metal-on-metal contact noise is unacceptable.

⑤ Determine Module and Envelope Dimensions

Larger modules increase tooth size and load capacity but also gear OD and weight. For standard industrial drives use M1.5–M4 from ISO 54 preferred series. For miniature precision drives use M0.15–M0.8. Verify that the selected module and resultant gear OD fit within your installation envelope before committing to tooling — particularly important for retrofits into existing gearboxes in Melbourne or Sydney manufacturing plants.

⑥ Specify Accuracy Grade

DIN Grade 6 / AGMA 13 covers general industrial drives, CNC machine tools, and most robotics. DIN Grade 5 / AGMA 13+ for aerospace accessories, medical instruments, and high-speed spindles above 5,000 rpm. Specifying higher than necessary adds significant cost — DIN Grade 5 gears can cost 2–3× Grade 6 for the same module. Get the grade right for the application, not for comfort.

⑦ Confirm Bore, Keyway, and Lubrication

Specify bore diameter and keyway to AS 1456 / ISO 773. For speeds above 1,000 rpm, specify ISO VG 150–220 gear oil per ISO 12925-1 Category CKD. Below 500 rpm, NLGI Grade 2 lithium-complex grease is adequate. Food-contact applications require NSF H1-registered lubricants per FSANZ guidelines. Correct lubricant selection alone extends metal bevel gear service life by 200–400% versus under-lubricated installations.

⑧ Request Full QA Documentation

For critical applications, specify the full documentation package: chemical composition report, mechanical performance report (tensile, hardness), dimensional CMM inspection report, and heat treatment records. For automotive IATF 16949-audited lines, also request PPAP documentation. Australia Ever-Power provides the complete QA package as standard for all metal bevel gear orders, supporting Australian buyers' own compliance obligations under AS 4024 machinery safety standards.

⚠ Tooth Wear & Pitting

Cause: Overload, wrong material grade, or lubricant depletion.

Fix: Verify design torque ≥ 1.5× nominal; upgrade to harder alloy steel; restore oil film and change to correct ISO VG grade lubricant.

⚠ Excessive Noise & Vibration

Cause: Misalignment, lubricant failure, or accuracy grade insufficient for speed.

Fix: Blue-dye contact check; realign shafts; upgrade to DIN Grade 6 spiral bevel if noise exceeds 85 dB(A) per Safe Work Australia limits.

⚠ Axial Thrust Bearing Failure

Cause: Axial loads exceeding 40% of radial load; wrong bearing type.

Fix: Install angular contact or tapered roller bearings rated for combined loads; verify thrust loads in design calculations before reassembly.

⚠ Corrosion

Cause: Wrong material for environment — carbon steel in wash-down or coastal exposure.

Fix: Replace with 316 SS or bronze grade; upgrade housing seals to IP65; inspect every 3,000 hours in coastal Queensland or Darwin environments.

⚠ Misalignment

Cause: Installation error or housing wear shifting gear centres.

Fix: Use dial indicator or laser alignment system; adjust with shims to achieve centred contact patch (50–70% face width); re-check backlash against manufacturer's specification.

🌿 Material Recyclability

Steel and alloy metal bevel gear scrap is 100% recyclable through certified metal recyclers operating in Sydney, Melbourne, and Brisbane. Australia Ever-Power's supply partners run closed-loop swarf recovery programmes that divert approximately 95% of machining waste from landfill, reducing embodied carbon per finished gear by an estimated 18–24%.

⚡ Energy Efficiency Impact

Replacing worm gear right-angle drives with precision metal spiral bevel gear pairs improves mechanical efficiency from a typical 70–85% to 97–99%. At a 37 kW motor, that difference saves roughly 4–10 kW per drive — at Australian commercial electricity rates (avg. $0.28/kWh), recovering $8,000–$24,000 annually per drive point under the EREP energy efficiency framework.

📋 Australian Regulatory Compliance

Machinery containing metal bevel gears must comply with AS 4024.1 series (Safety of Machinery — guarding and risk assessment), AS 2938 (Gears — General), and where food contact is involved, AS 4674 and FSANZ standards. Australia Ever-Power provides gear-level QA documentation that supports customers' own AS 4024 compliance processes.

🌏 Key Trade Markets

Beyond domestic supply, Australia Ever-Power supports trans-Tasman (New Zealand) and Pacific Island market exports of metal bevel gears under HS code 8483.10. Export documentation, country-of-origin certificates, and customs HS classification support are available for customers with cross-border supply obligations under AUSFTA and CPTPP trade agreements.

🏭 Sydney Local Stock

Standard metal bevel gear pairs M0.5–M6 in steel, SS316, brass, and aluminium stocked at 27 Harley Crescent, Condell Park NSW 2200. Same-week dispatch to Sydney metro; 2–3 business days nationally by DHL or UPS.

📐 ISO 9001 & IATF 16949

Full QA documentation — chemical composition, mechanical performance, CMM dimensional inspection, heat treatment records — supplied as standard. PPAP documentation available for automotive OEM customers requiring IATF 16949 compliance.

🔧 OEM / ODM Service

Custom metal bevel gears from customer drawings (DXF/DWG/PDF) or physical samples. Quotation within 48 hours of enquiry. Sample lead time: 3–5 days (stock basis); 20 days (custom). Bulk: 25 business days from order confirmation.

🔬 Engineering Review

Free pre-purchase application review covering gear ratio, design torque, service factor, module, accuracy grade, material, and lubrication. IPR protection guaranteed — customer designs, logos, and IP are held in strict confidence throughout the supply process.

📦 Nationwide & Export Delivery

DHL and UPS dispatch to all Australian states and territories including remote WA, NT, and Tasmania. International export capability with full customs documentation for NZ, Pacific Island, and Southeast Asian customers.
